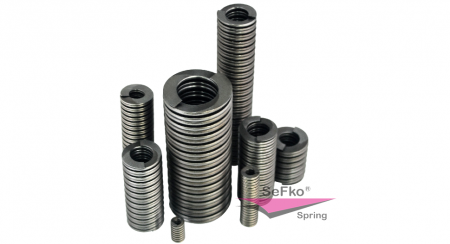

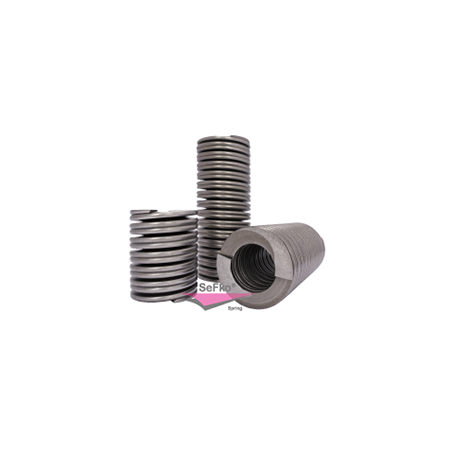

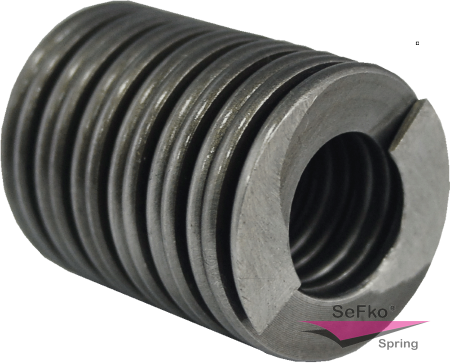

SeFko® Spring
SeFko® Spring
The SeFko® Spring is economical for assembly, disassembly,
lubrication and maintenance.
| MANDREL In mm |
HOUSING In mm |
L In mm |
F~75% In N |
F~100% In N |
s~75% in mm |
s~100% in mm |
||
|---|---|---|---|---|---|---|---|---|
| 10 | 23 | 52.2 | 2250 | 2980 | 12,9 | 17,1 | ||
| 10 | 23 | 70 | 6600 | 8800 | 7,5 | 10 | ||
| 10 | 23 | 92 | 11000 | 14800 | 4 | 5,4 | ||
| 15 | 33 | 77,5 | 5000 | 6600 | 18 | 23,8 | ||
| 15 | 33 | 100 | 12000 | 16000 | 10 | 13,4 | ||
| 15 | 33 | 126 | 21000 | 28500 | 6 | 8,1 | ||
| 20 | 40 | 90 | 6200 | 8400 | 22 | 29,5 | ||
| 20 | 40 | 114 | 16250 | 21500 | 13 | 17 | ||
| 20 | 40 | 145 | 30000 | 39600 | 8,5 | 11,2 | ||
| 30 | 60 | 128 | 13000 | 17450 | 31,5 | 42 | ||
| 30 | 60 | 148 | 22000 | 29000 | 24,5 | 32,3 | ||
| 30 | 60 | 184,5 | 48000 | 65400 | 12,5 | 17 |
Inquiries
Please fill in the “SeFkoSPRING INQUIRY LIST”, to develop the customize spring for you.
Depend on your machine and spindle’s type, to select the most suitable spring. Additional Photos or drawings are helpful for the developing.
Please down load the list from following link
SeFko SPRING FOR MILLING MACHINE (FR-0007-SINGLE SPRING)
SeFko SPRING FOR MILLING MACHINE (FR-0008-SET OF SPRINGS)
SeFko SPRING FOR SPECIAL NEEDS (FR-00012)
Our technical contact mail box : info@sefko.biz
